LED dimming controller manufactuer 4CH RF to 0 - 10v signal converter for LED lighting
Product Description
Technical Parameters
● Input voltage: 85-265VAC or 12VDC
● Output signal: 0/1-10V x 4CH
● Dimming range: 0-100%
● Remote distance: 30m
● Working temperature: -30℃~55℃

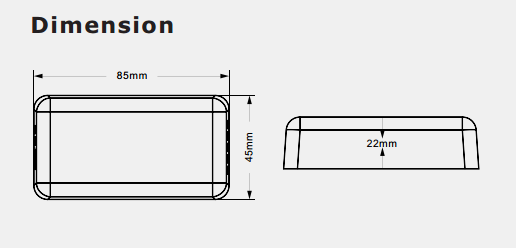

● Product size: L85×W45×H22mm
● Net weight: 53g
Summary
● 4CH 0/1-10V dimmer, output connect with 0/1-10V dimmable power supply or other 0/1-10V dimming driver.
● Full compatibility with a variety of single color, dual color or RGB/RGBW remoters.
● Applied to control 0/1-10V series product by remoters.
● Adopt 2.4GHz wireless technology, can accept up to 10 remoters control.
● Can be WiFi controlled by APP installed on IOS or Android mobile devices while working with WiFi-Relay controller
Match with remote controller and wall controller:
Learning Method:
Switch off the power, then switch on power again, short press on/off or zone key 3 times on the remote quickly within 5s after power on, The link is done once the light blinks 3 times.
Deleting ID:
Short press on/off or zone key 5 times on the remote quickly within 5s after power on.
The unlink is done once the light blinks 5 times.
Delete operation will delete all matched remoter, include APP
Match with WiFi-Relay, then can be controlled by smart phone:
Learning method:
In Device list interface, click + key add new receiver, click enter Match and setting interface,
click > key of Type line, select DIM, WW/NW, RGB or RGBW type for different light type,
Switch off the power, then switch on again,
Click Match key of the APP within 5s, The link is done once the light blinks 3 times.
One WiFi-Relay controller can carry up to 16 pcs receivers.
